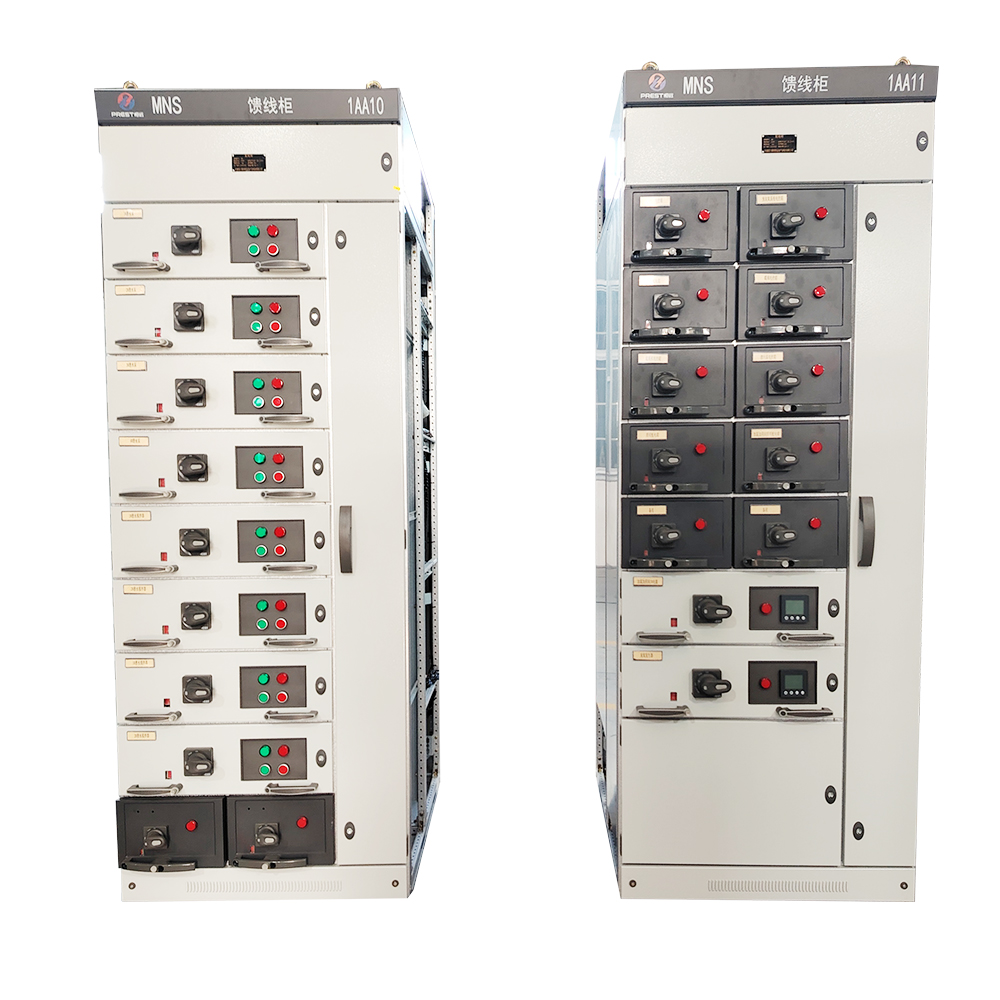

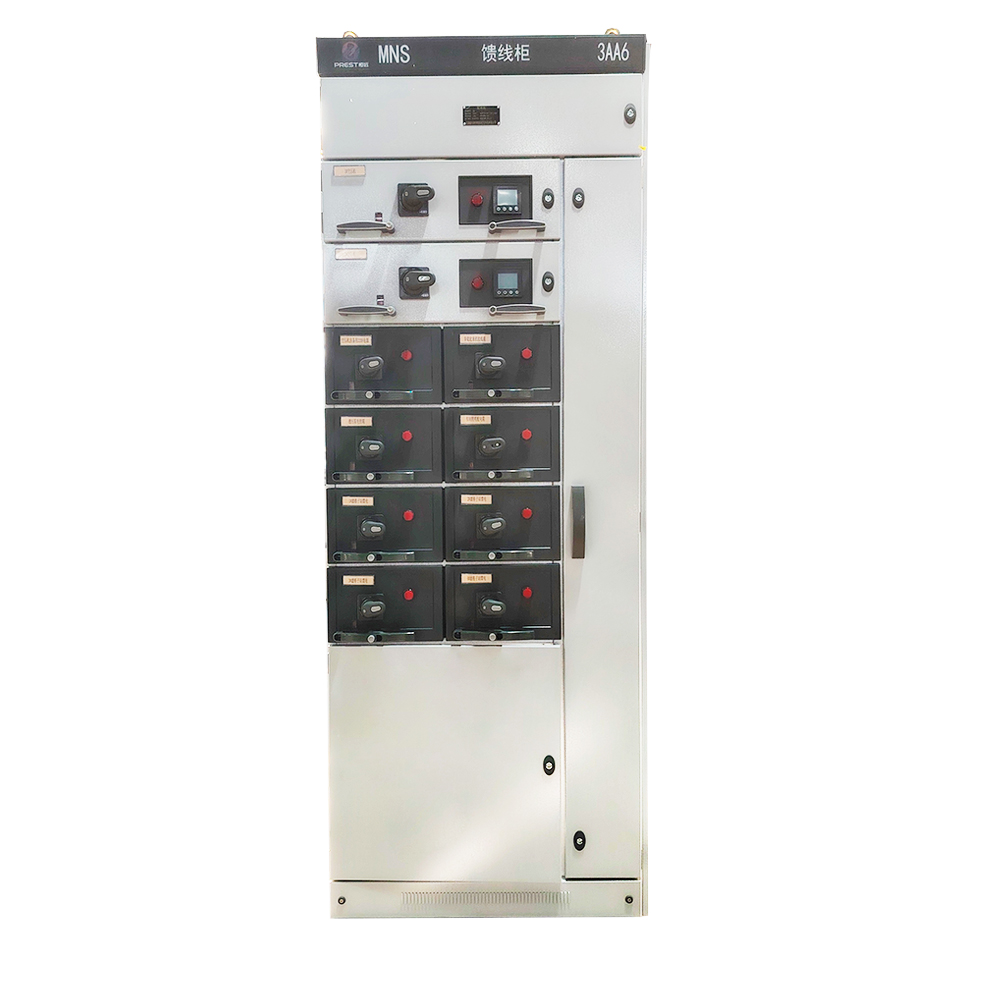

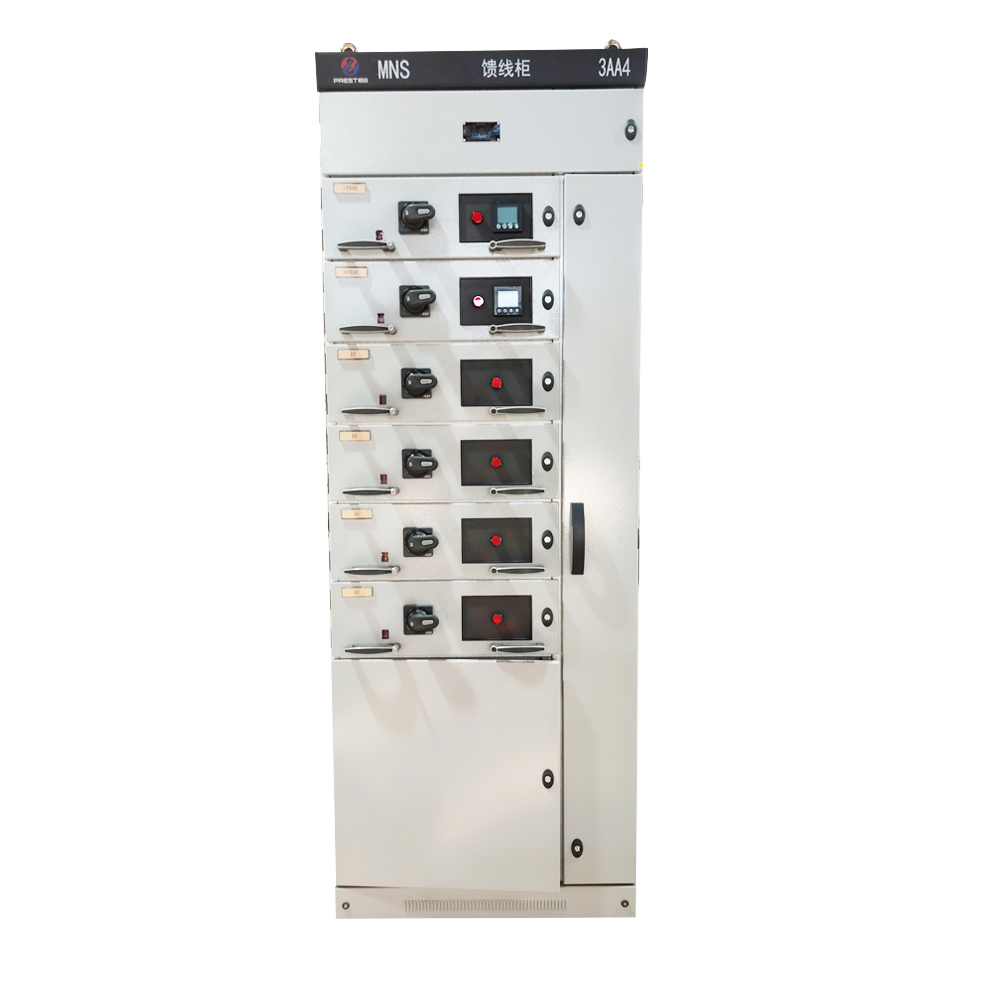

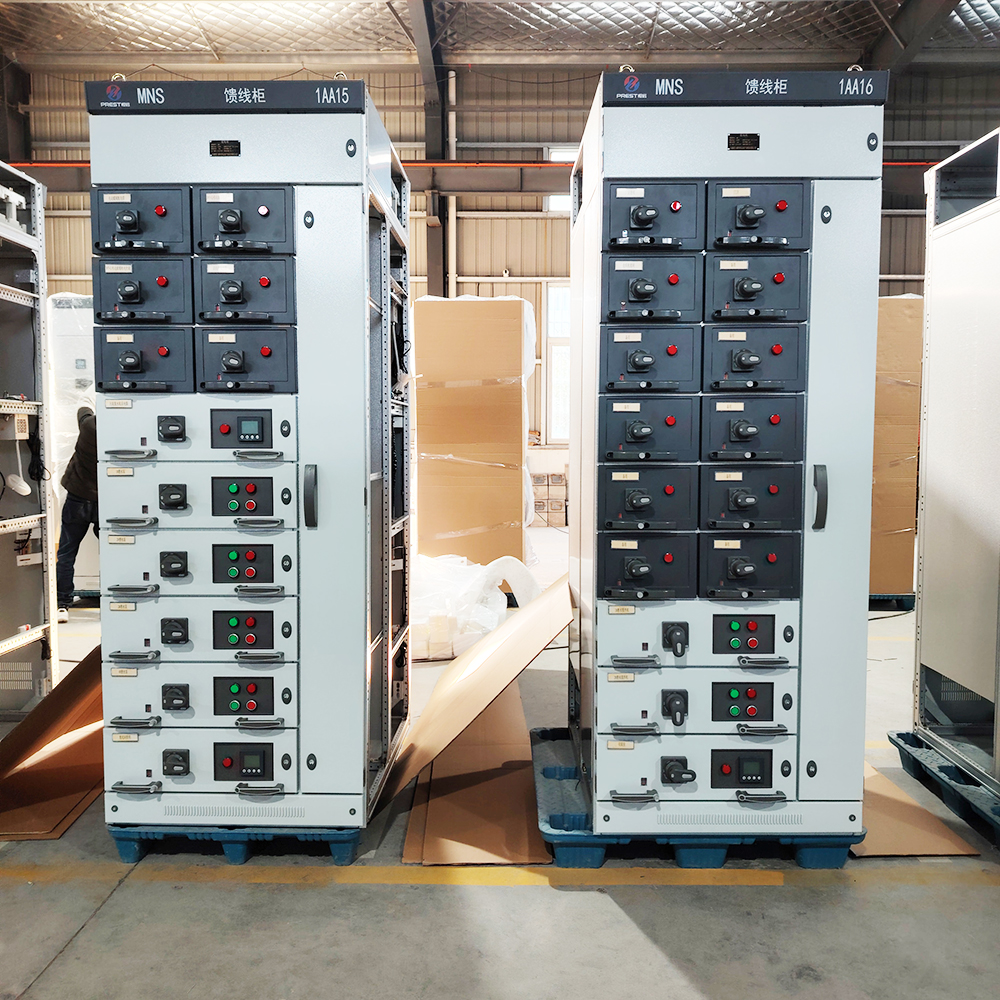

MNS drawer cabinet is a low-voltage withdrawable switchgear based on modular design, widely used in power generation, transmission, distribution, energy conversion, and control of energy consuming equipment.
Technical features
Modular design: The MNS drawer cabinet is assembled using standard modules, with a flexible structure that is easy to maintain and expand.
High protection performance: The cabinet is made of high-strength flame-retardant engineering plastic, which has a good protection level and meets the standards.
Flexible inlet and outlet solutions: Compact design that can meet various inlet and outlet requirements such as upper inlet and outlet, upper inlet and lower outlet, lower inlet and upper outlet, and lower inlet and lower outlet.
Structural characteristics
Combination structure: assembled from C-shaped steel, with internal compartments separated by steel plates or high-strength flame-retardant plastic functional boards to ensure electrical safety.
Drawer unit: The functional unit includes standard units such as protection, operation, conversion, control, adjustment, measurement, and indication, which can be combined according to needs.
Safety interlock mechanism
Anti misoperation interlock: It is jointly completed by the circuit breaker operating handle mechanism and the drawer position mechanical interlock operating mechanism, effectively preventing misoperation and ensuring operational safety.
application area
MNS drawer cabinets are widely used in power plants, substations, petrochemicals, metallurgy and steel rolling, light industry and textiles, high-rise buildings and other places as power, distribution and motor control centers, capacitor compensation and other electrical energy conversion, distribution and control.
